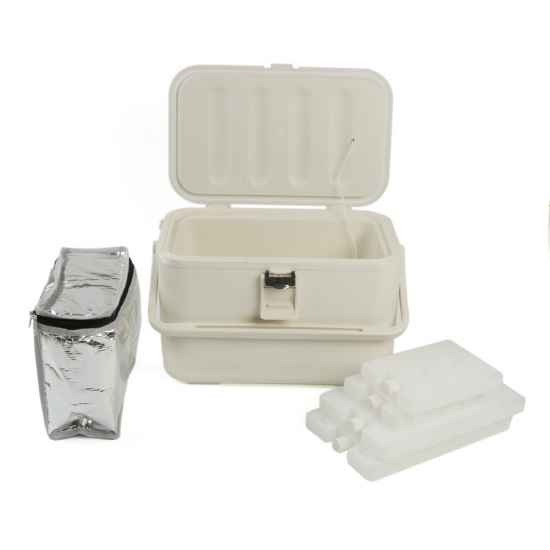

12L vaccine cold chain equipment medical cool chain box
Medical cold chain boxes, specially designed to hold temperatures within essential safe temperature limits without electricity during transport or use for Medical Products, VD products, biological specimens,food and so on. Our 12L vaccine transport box is an ideal option.
Category |
Medical cooler box |
Main Material |
Inner: Polypropylene Insulation: Polystyrene foam |
Application |
Medical Products like Vaccines, Insulin and biopharmaceutical; IVD products and biological specimen, food |
Dimension |
Inner: Polypropylene Insulation: Polystyrene foam |
Empty Capacity |
12L |
Usable Cold Space Capacity |
5.38L |
Cold source |
Hard ice bricks or soft ice gels |
Cold life |
Ambient temperature: not above 30 deg.C hold articles inside at 2 deg.C to 8 deg.C about 50 hours |
Carton Size |
51.6*41.2*27.8cm/2 sets |

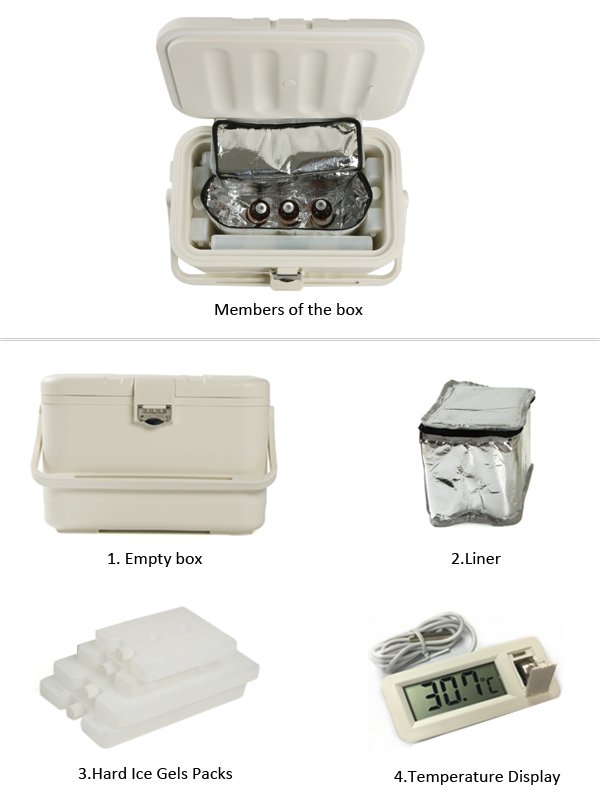

1.1 Construction of Cold Chain Box for Blood Sample Transportation and Carriers

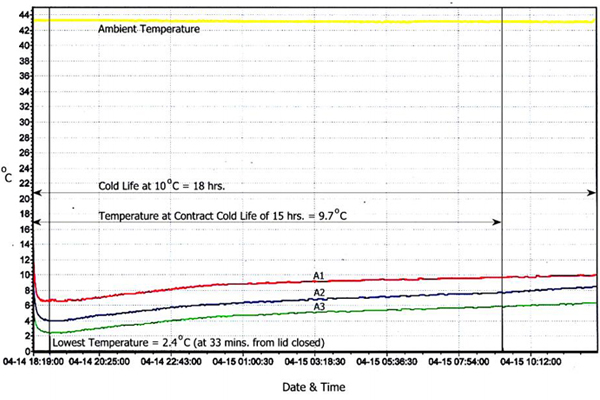

1.2 Test data of 12L Cold Chain Box
1.3 How to Use the Cold Chain Box
1.4 More Series of Cold Chain Box
Model No. |
Container Capacity |
Usable Cold Space Capacity |
Internal Size |
External Size |
HTLL-1080 |
8L |
3.5L |
28.7*15.7*16.2cm |
34*21*24cm |
HTLL-0611 |
11L |
8L |
34.5* 20.5*24cm |
42*28*32cm |
HTLL-1012 |
12L |
7.2L |
34*19*20cm |
40*25*26cm |
HTLL-0914 |
14L |
7.4L |
33.5*17*25cm |
42*25.50*32cm |
HTLL-1018 |
18L |
9.4L |
36*21*24cm |
43*28*32cm |
HTLL-1228 |
28L |
16L |
43.5*24.5*27cm |
52*32*34.5cm |
HTLL-1636 |
36L |
24L |
46.50*25*32.8 cm |
57*33.50*40.5cm |
HTLL-2038 |
38L |
24L |
45*28.5*21cm |
53*35*35cm |
HTLL-3048 |
48L |
31.5L |
59.5*25*31cm |
68*34*37.5cm |
HTLL-3268 |
68L |
33.7L |
68*23*32cm |
73*38*42cm |
