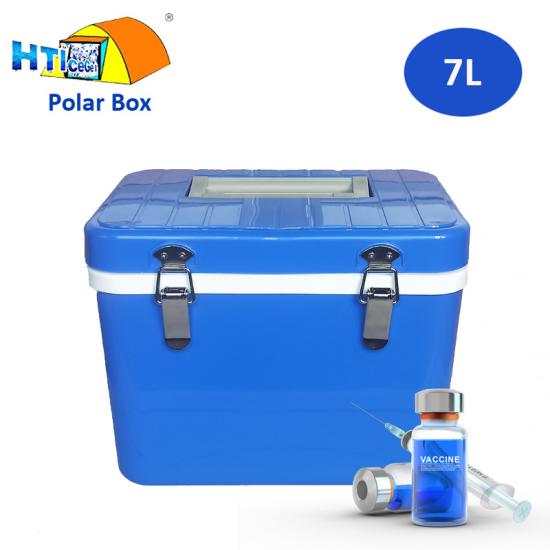

Portable Medical Cooler Transportation Box for Covid-19 Vaccine Transportation 7L
The 7L medical cold chain box is specially designed for vaccine, medicine, blood plasma, biology products short storage and trans-shipment without electric power. It can realize to control the temperature from 0ºC to 10°C,-12ºC to -18ºC/-36ºC/-55ºC or more according to change the quantity of Ice Plate inside. New and environment friendly raw materials,various humanization design,convenient and practical make it be the best choice in blood donation vehicle, blood bank stations, clinics,etc.
Category |
Medical cooler box |
Main Material |
Inner: PP Insulation: EPS foam |
Application |
Medical Products like Vaccines, Insulin and biopharmaceutical; IVD products and biological specimen, food |
Dimension |
Inner: Polypropylene Insulation: Polystyrene foam |
Empty Capacity |
7L |
Usable Cold Space Capacity |
4.3L |
Cold source |
Hard ice bricks or soft ice gels |
Cold life |
Ambient temperature: not above 30 deg.C hold articles inside at 2 deg.C to 8 deg.C about 28 hours |
Carton Size |
36*28*29cm/1 set |

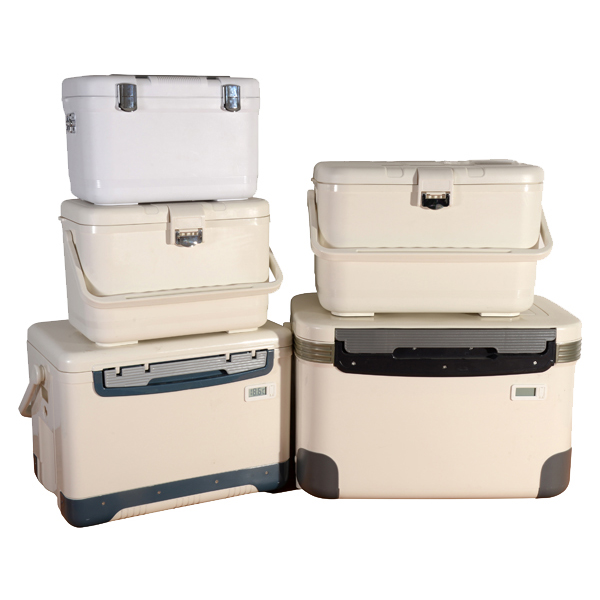

MORE SERIES COLD CHAIN BOX
Model No. |
Container Capacity |
Usable Cold Space Capacity |
Internal Size |
External Size |
HTLL-1080 |
8L |
3.5L |
28.7*15.7*16.2cm |
34*21*24cm |
HTLL-0611 |
11L |
9L |
34.5* 20.5*24cm |
42*28*32cm |
HTLL-1012 |
12L |
5.38L |
34*19*20cm |
40*25*26cm |
HTLL-0914 |
14L |
7.4L |
33.5*17*25cm |
42*25.50*32cm |
HTLL-1018 |
18L |
8.5L |
36*21*24cm |
43*28*32cm |
HTLL-1228 |
28L |
16L |
43.5*24.5*27cm |
52*32*34.50cm |
HTLL-1636 |
36L |
24L |
46.50*25*32.8 cm |
57*33.50*40.50cm |
HTLL-2038 |
38L |
20L |
45*28.5*21cm |
53*35*35cm |
HTLL-3048 |
48L |
31L |
59.5*25*31cm |
68*34*37.5cm |
HTLL-3268 |
68L |
33.7L |
68*23*32cm |
73*38*42cm |
