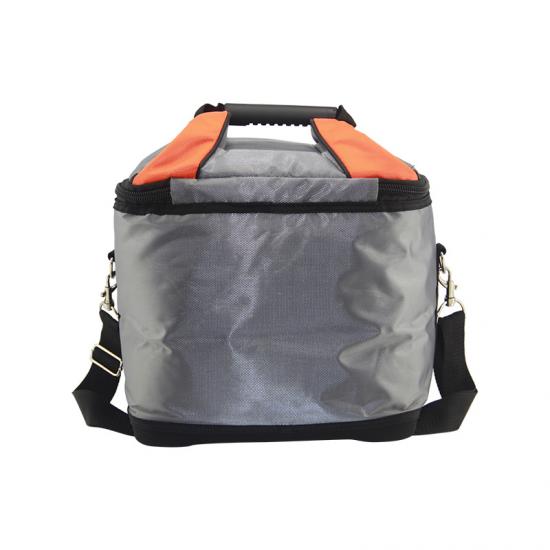

Vaccine Cold Chain Storage and Transport Bag
1.1 Specifications of Vaccine Cold Storage
Usable Cold Space Capacity/Dimensions |
8.1 litres (2.11 US gal.) |
Usable cold spacel Dimensions |
25*17*19cm(10.2*5.5*8.7'') |
Empty Weight: |
925g(2lb.) |
Empty Capacity: |
12.3 Litres(2.6gals.) |
Weight(incl. HTIceGel Packs) |
3.32kg.(7.3lb.) |
External Dimensions: |
L30*D22*H24cm(11.8*8.7*9.5") |
Internal Dimensions |
L28*D20*H22cm(11.0*7.9*8.7") |
External Dimensions |
Polyester 600D,with EVA hard sheet inserts front and bottom |
Internal Surface |
PVC, waterproof |
Liner |

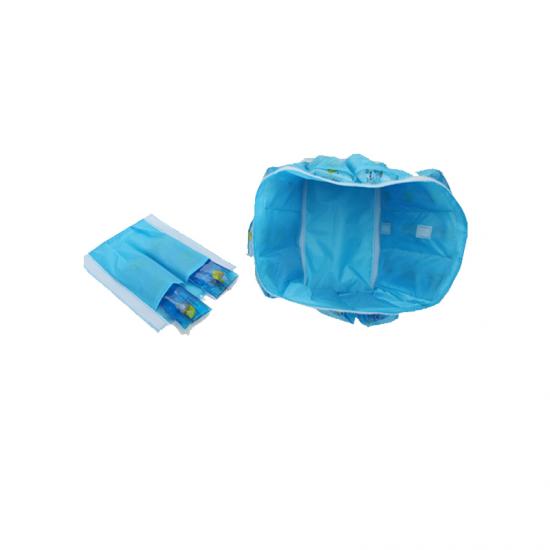

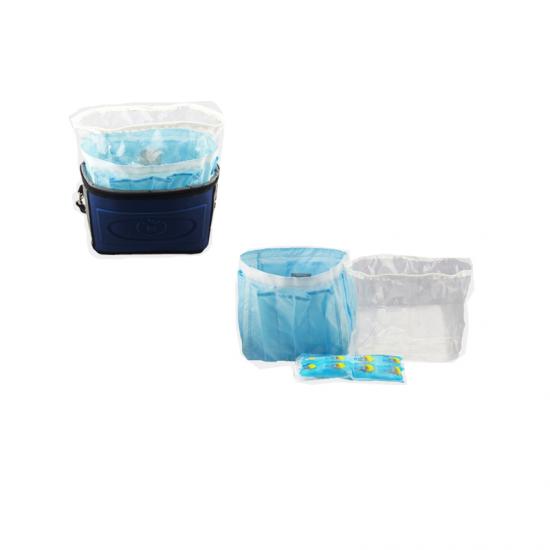

PVC transparent waterproof with pockets for HTIceGel |
Insulation
|
Side 10mm(0.39 inch) NBR closed cell foam Bottom 10mm(0.39 inch) NBR closed cell foam Lid 8mm(0.32 inch) NBR closed cell foam |
Lid Type: |
Polyester 600D, Insulated, lined, facbric highe, heavy duty zip. |
Refrigeration Pack |
Pack: HTI-21 HTIceGel(Re-Usable) |
Packing: |
PE bag + cardboard outer carton |
shipping carton Dimensions:
|
Pieces/Carton Weight/carton 48*46*31.5cm(18.9*18.1*12.4") 4pcs/ctn 14.5kg.(38.5lbs) Cartons(20') TEU Net Weight(FCL) 400ctn/20' TEU(1600pcs) 5800 kg.(6.4 US Short Tons |
MOQ | 100PCS |
1.2 Application
Cold Chain Bags and Boxes, specially designed to hold temperatures within essential safe temperature limits without electricity during transport or use for:
Vaccines
Insulin
Biopharmaceutical, Life Science and other Medical Products
IVD products and biological specimens
National Health Service,WHO,UNICEF, Blood & Tissue Transplant Agencies
Selected fresh food, drink and dairy products
1.3 Notes
When not using your vaccine cool bag, store your sealed HT Ice Bricks and water filled Ice Packs in the freezer - then they will be ready for using just when you want them.
For longest cold life, make sure that the temperature of the contents to be loaded into the Cold Chain Box is below 8°C.
Shipping&Payment of Vaccine Carrier Bag
MOQ | 100pcs per color |
Packing | 1pc/polybag, 40pcs/ctn |
Carton Size | 53*44*35cm |
N.W.: | 17.5kg |
G.W.: | 18.5 kg |
sample: |
Sample is available within 7 business days. Buyer is responsible for paying sample and shipping costs, which will be deducted from first order. |
Delivery Time | 30-40 days after confirmed order |
Loading Port | Xiamen |
Payment Terms |
T/T (30% deposit in advance, balance before shipment) |
